Antenna Set HDS 166 Plus
With this antenna set, a low-priced and space-saving set was created as an alternative to the fully automatic satellite system. Perfect, if you have no satellite reception directly at the vehicle, e.g. if you are shaded by trees and you want to place the system some distance from the vehicle. The interaction of the supplied components with the revised „CAPcontrol“ app (Android and iOS) is optimally coordinated. As soon as all components are set up and connected, the antenna is aligned in 60 seconds.
Functionality:
The heart of the antenna set is the CAP converter, which is connected between the flat antenna and the TV set. Together with the USB WLAN adapter UFZ 132, these two components activate functions never seen before.
- Language wizard during setting
- 11 satellites pre-programmed
- After installation of the „CAPcontrol“ app on your smartphone/tablet, the simple alignment can start
- Streaming of television and radio programmes to mobile devices
Scope of delivery:

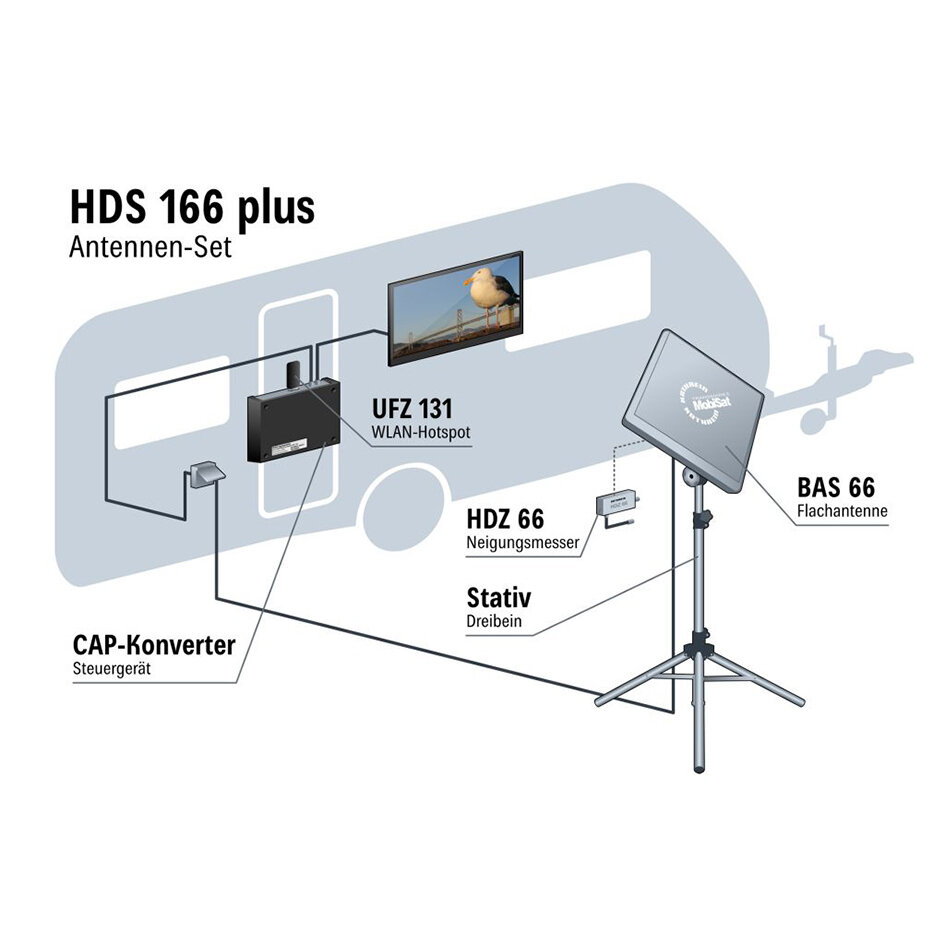

Flat antenna BAS 66 (with Twin LNB), tripod, adapter joint, CAP converter (dimensions W 22 x D 17 x H 3.5 cm), USB WLAN adapter UFZ 131, 15 m coaxial cable, inclinometer HDZ 66, and carrying bags for tripod and antenna.

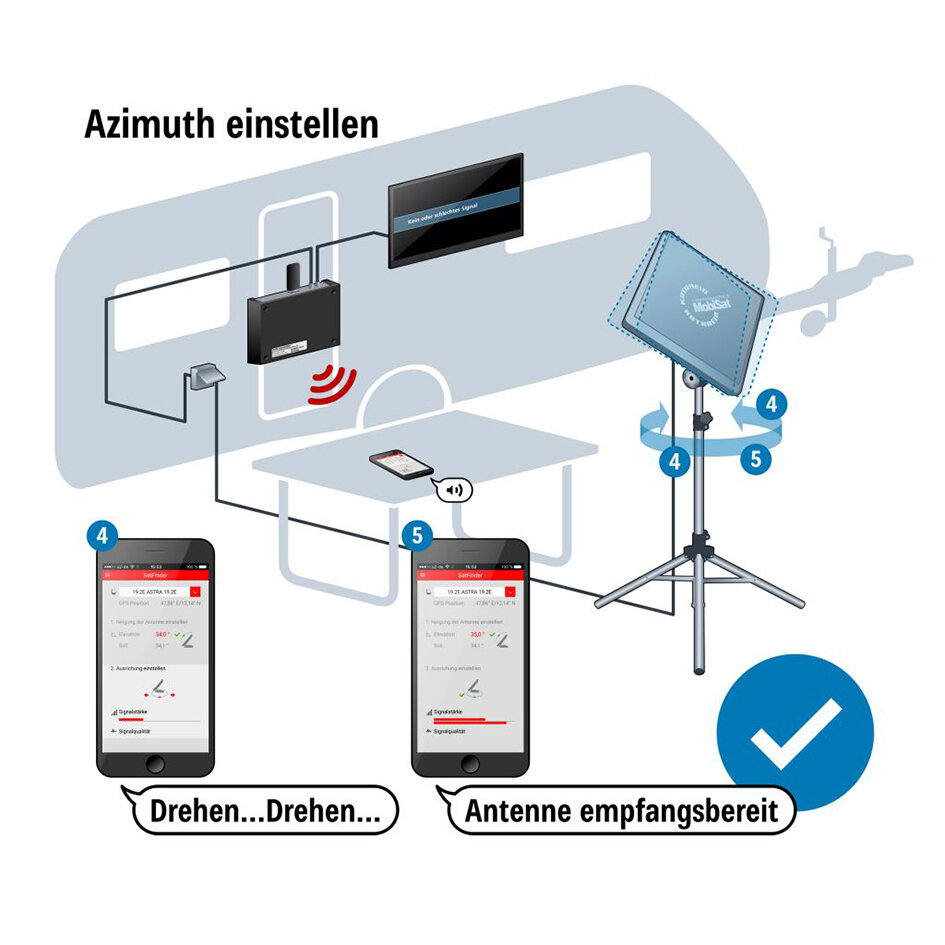

The app „CAPcontrol“ (available for Android and iOS) in connection with the CAP converter and the USB WLAN adapter UFZ 132 provides acoustic and visual directions on how the satellite antenna has to be aligned: first, the right elevation is adjusted („Elevation“, steps 1 – 3), then the inclination („Azimuth“, steps 4 – 5).
