Fresh Water Tank Display FTA 5
115,99 €

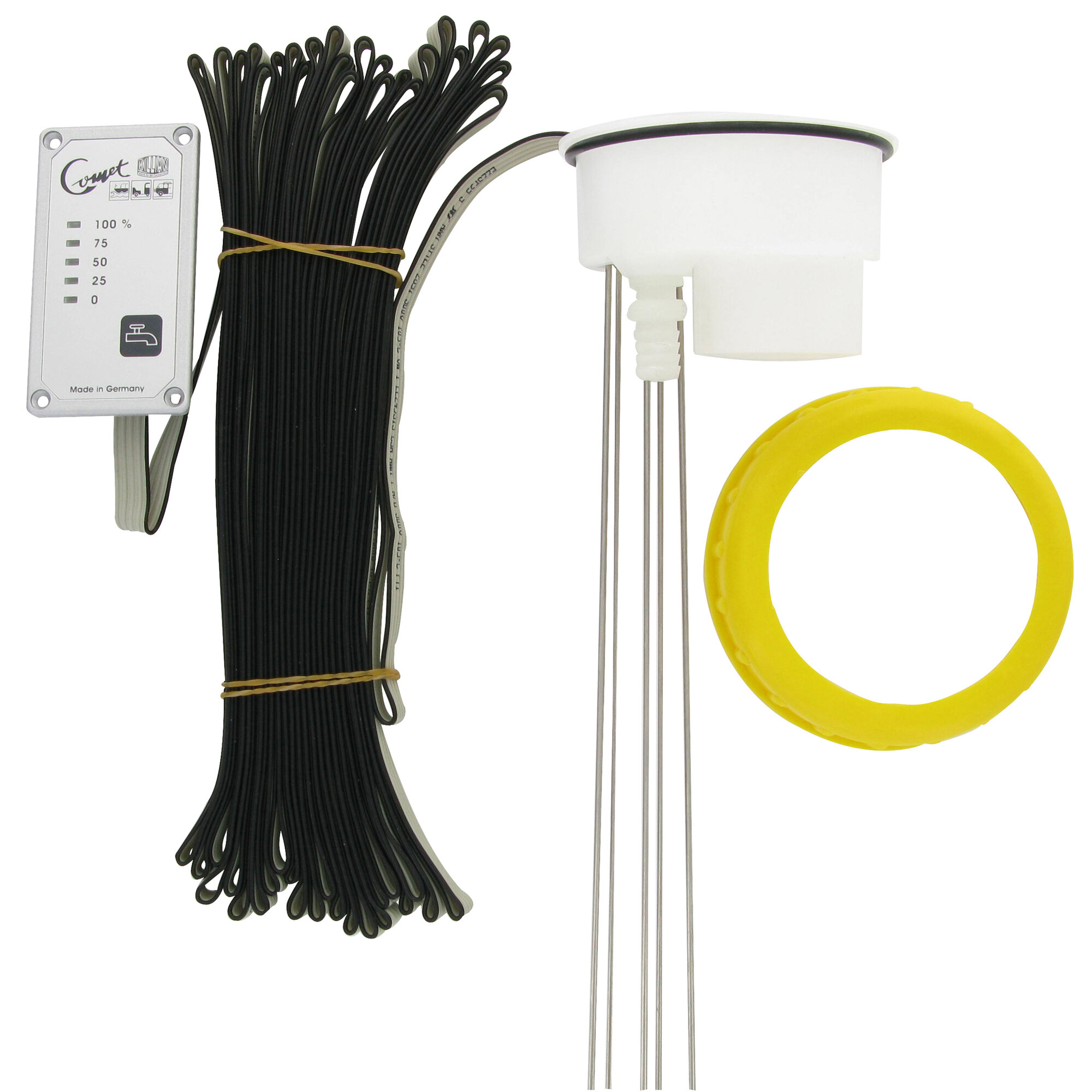

Complete set for fresh water tank display for canisters and permanently installed tanks with DIN 96 openings. Consists of a rod tank probe that can be shortened, a 12 m connection cable and a level indicator that can be installed anywhere in the vehicle. Incl. installation and operating instructions. All parts are ready to connect.
Filling level display
- Operating voltage: 12 V DC (9 V – 16 V)
- Current consumption: off: 0 mA; on: 35 mA, 12 V
- Installation dimension/depth (W x H): 29/14 x 62 mm
Water level sensor
Tank opening: 80 mm
Rod length: max. 370 mm (can be adjusted to tank height)
Cable length: 12 m
Brand
Comet
EAN
4031656004698
Width
85
Height
47
Depth
85
Packaging Size (max)
42,9 cm
Packaging Size (mid)
10,1 cm
Packaging Size (min)
8,9 cm
Net Weight
392 g
Gross Weight
520 g
